TE Connectivity AMP Connectors

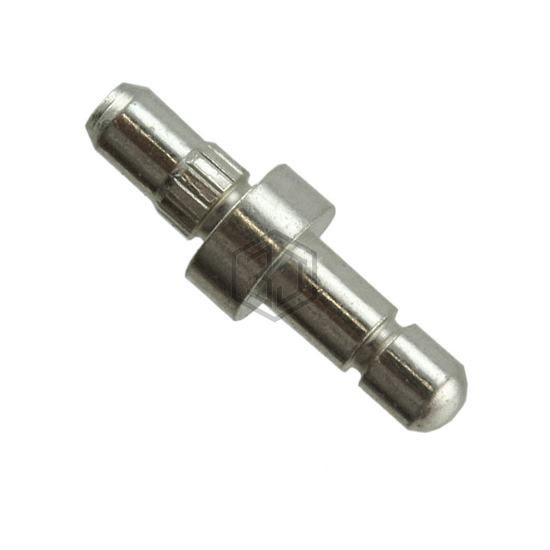

CONN PC PIN CIRC 0.058DIA TIN
3-60599-1 is a Terminals - PC Pin, Single Post Connectors manufactured by TE Connectivity AMP Connectors. CONN PC PIN CIRC 0.058DIA TIN. Key specifications: mounting type Through Hole, contact material Brass, termination Press-Fit, Knurled.
In Stock: 3,180
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Terminal Type | Single Post |
| Terminal Style | Flanged, Pin Retention |
| Pin Size - Above Flange | 0.058" (1.47mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | 0.165" (4.18mm) |
| Length - Below Flange | 0.143" (3.63mm) |
| Length - Overall | 0.352" (8.94mm) |
| Flange Diameter | 0.110" (2.79mm) |
| Mounting Hole Diameter | 0.059" ~ 0.062" (1.50mm ~ 1.57mm) |
| Mounting Type | Through Hole |
| Termination | Press-Fit, Knurled |
| Insulation | Non-Insulated |
| Board Thickness | 0.063" (1.60mm) |
| Contact Material | Brass |
| Contact Finish | Tin |
| Contact Finish Thickness | 15.0µin (0.38µm) |
Submit your RFQ for 3-60599-1 and get a quote within 24 hours.
