TE Connectivity AMP Connectors
CONN D-SUB PLUG 37POS R/A SLDR

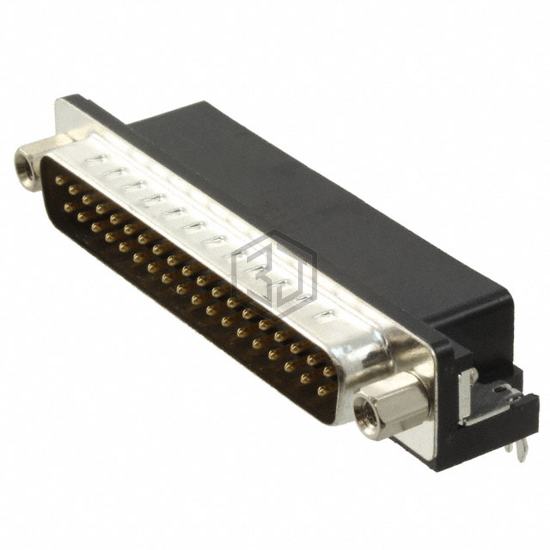

3-1634583-2 is a D-Sub Connectors manufactured by TE Connectivity AMP Connectors. CONN D-SUB PLUG 37POS R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 5A, termination Solder, number of positions 37.
In Stock: 1,362
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 4 (DC, C) |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A |
| Backset Spacing | 0.411" (10.43mm) |
| Features | Board Lock, Grounding Indents |
Submit your RFQ for 3-1634583-2 and get a quote within 24 hours.
