TE Connectivity AMP Connectors

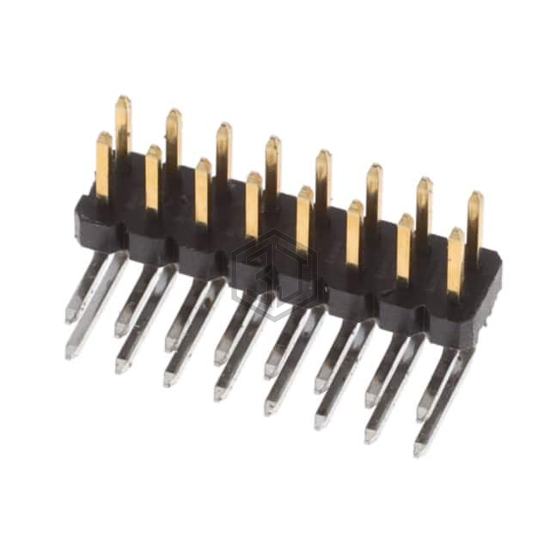

16P,2MM,BRK HDR,DRRT,2.8,0.1AU,T
2842150-8 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. 16P,2MM,BRK HDR,DRRT,2.8,0.1AU,T. Key specifications: mounting type Through Hole, Right Angle, operating temperature -40°C ~ 125°C, voltage rating 125VAC/DC, contact material Copper Alloy.
In Stock: 6,286
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header, Breakaway |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.157" (4.00mm) |
| Contact Length - Post | 0.110" (2.79mm) |
| Overall Contact Length | - |
| Insulation Height | 0.059" (1.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.94µin (0.100µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2A |
| Voltage Rating | 125VAC/DC |
Submit your RFQ for 2842150-8 and get a quote within 24 hours.
