TE Connectivity AMP Connectors
10P,2MM,BRK HDR,DRVT,SMD,0.38AU,

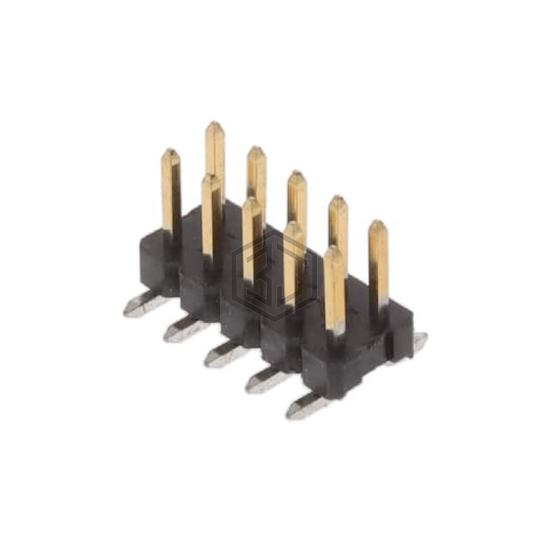

2842143-5 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. 10P,2MM,BRK HDR,DRVT,SMD,0.38AU,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage rating 125VAC/DC, contact material Copper Alloy.
In Stock: 4,040
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header, Breakaway |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.157" (4.00mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.059" (1.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | Pick and Place |
| Operating Temperature | -40°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2A |
| Voltage Rating | 125VAC/DC |
Submit your RFQ for 2842143-5 and get a quote within 24 hours.
