TE Connectivity AMP Connectors

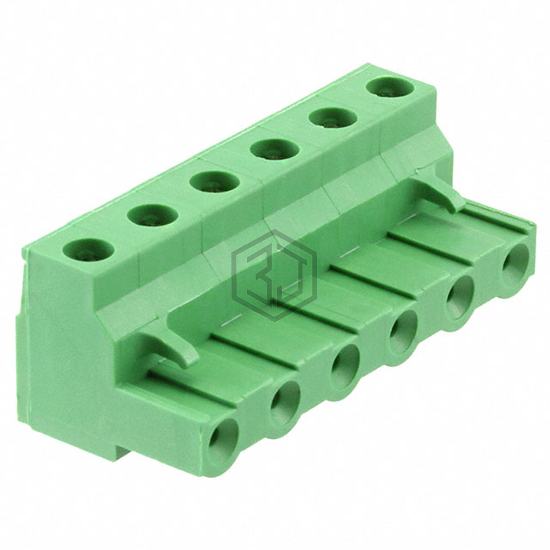

TERM BLOCK PLUG 6POS STR 7.5MM
282959-6 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by TE Connectivity AMP Connectors. TERM BLOCK PLUG 6POS STR 7.5MM. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 110°C, color Green, termination style Screw - Rising Cage Clamp.
In Stock: 21
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 6 |
| Positions Per Level | 6 |
| Number of Levels | 1 |
| Pitch | 0.295" (7.50mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw - Rising Cage Clamp |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 15 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm² | 0.05-2mm² |
| Color | Green |
| Operating Temperature | -40°C ~ 110°C |
| Contact Mating Finish | Tin |
| Features | Retention Latches (Non-Wire Side) |
Submit your RFQ for 282959-6 and get a quote within 24 hours.
