TE Connectivity AMP Connectors

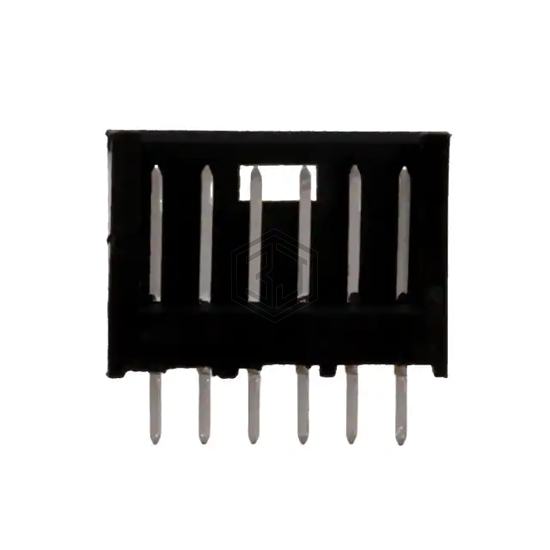

CONN HEADER VERT 6POS 2.54MM
280372-1 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 6POS 2.54MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 80°C, voltage rating 40V, contact material Brass.
In Stock: 8,023
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 3 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | 0.260" (6.60mm) |
| Contact Length - Post | 0.138" (3.50mm) |
| Overall Contact Length | 0.563" (14.30mm) |
| Insulation Height | 0.496" (12.60mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Thermoplastic |
| Features | - |
| Operating Temperature | -40°C ~ 80°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | 40V |
Submit your RFQ for 280372-1 and get a quote within 24 hours.
