TE Connectivity AMP Connectors
MULTI FUNCTION MIMO ANTENNA 2G/3

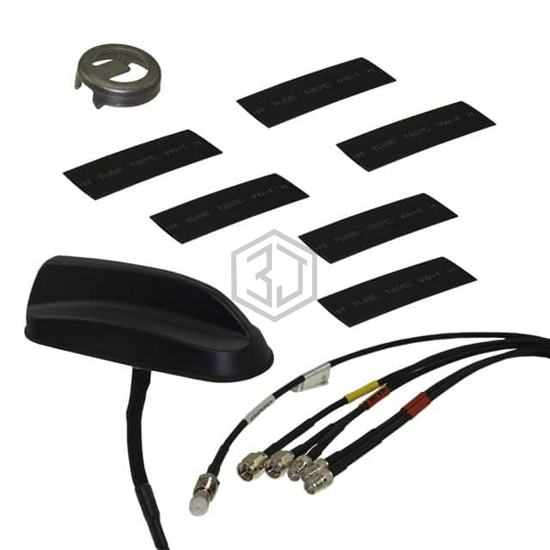

2332157-4 is a RF Antennas manufactured by TE Connectivity AMP Connectors. MULTI FUNCTION MIMO ANTENNA 2G/3. Key specifications: mounting type Panel Mount, termination FME, SMA, ingress protection IP66, power - max 25 W.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| RF Family/Standard | Cellular, Navigation |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.587GHz, 1.94GHz, 2.4GHz, 3.15GHz, 5.45GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 3.8GHz, 4.9GHz ~ 6GHz |
| Antenna Type | Dome |
| Number of Bands | 6 |
| VSWR | 2 |
| Return Loss | - |
| Gain | 2dBi, 4dBi, 5dBi, 6dBi |
| Power - Max | 25 W |
| Features | Cable - 300mm, LNA |
| Termination | FME, SMA |
| Ingress Protection | IP66 |
| Mounting Type | Panel Mount |
| Height (Max) | 1.969" (50.00mm) |
| Applications | 2G, 3G, 4G, Beidou, Galileo, GNSS, GPS, WLAN |
Submit your RFQ for 2332157-4 and get a quote within 24 hours.
