TE Connectivity AMP Connectors

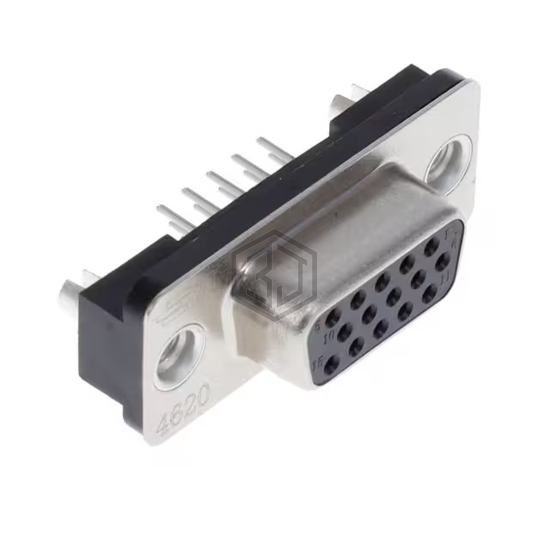

AMPL REC, HD22, VERT, 15P, THREA
2317171-1 is a D-Sub Connectors manufactured by TE Connectivity AMP Connectors. AMPL REC, HD22, VERT, 15P, THREA. Key specifications: mounting type Through Hole, current rating (amps) 3A, termination Solder, number of positions 15.
In Stock: 2,974
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, High Density |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Mounting Type | Through Hole |
| Shell Size, Connector Layout | 1 (DE, E) High Density |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A |
| Backset Spacing | - |
| Features | Board Lock |
Submit your RFQ for 2317171-1 and get a quote within 24 hours.
