TE Connectivity AMP Connectors

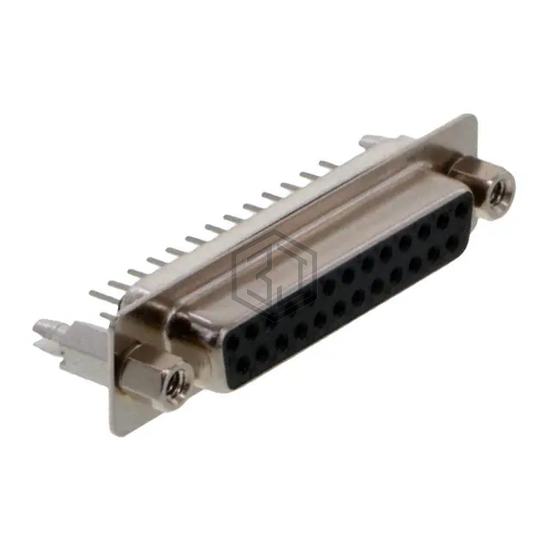

CONN D-SUB RCPT 25POS VERT SLDR
2301841-2 is a D-Sub Connectors manufactured by TE Connectivity AMP Connectors. CONN D-SUB RCPT 25POS VERT SLDR. Key specifications: mounting type Through Hole, current rating (amps) 1.5A, termination Solder, number of positions 25.
In Stock: 2,602
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Mounting Type | Through Hole |
| Shell Size, Connector Layout | 3 (DB, B) |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin-Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 1.5A |
| Backset Spacing | - |
| Features | Board Lock |
