TE Connectivity AMP Connectors
PCB ANT, 5G-2G CAT-M, WORLD BAND

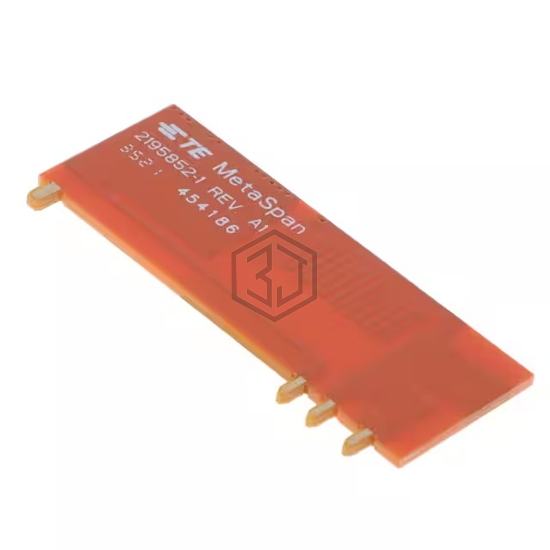

2195852-1 is a RF Antennas manufactured by TE Connectivity AMP Connectors. PCB ANT, 5G-2G CAT-M, WORLD BAND. Key specifications: mounting type Through Hole, termination PCB, frequency range 698MHz ~ 960MHz, 1.42GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz.
In Stock: 4,741
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.525GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.42GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 6 |
| VSWR | 3 |
| Return Loss | - |
| Gain | 4.5dBi |
| Power - Max | - |
| Features | - |
| Termination | PCB |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Height (Max) | 0.062" (1.58mm) |
| Applications | 4G, LTE, GNSS |
Submit your RFQ for 2195852-1 and get a quote within 24 hours.
