TE Connectivity AMP Connectors
CONN HEADER VERT 4POS 2.54MM

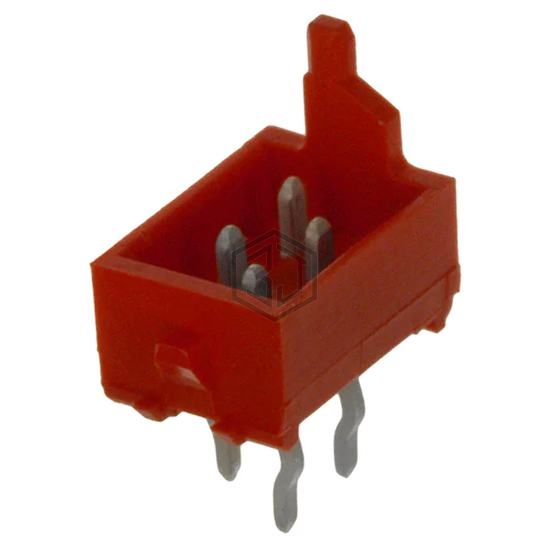

215464-4 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 4POS 2.54MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating 230V, contact material Brass.
In Stock: 4,344
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Press-Fit, Solder |
| Fastening Type | Latch Lock |
| Contact Length - Mating | - |
| Contact Length - Post | 0.122" (3.10mm) |
| Overall Contact Length | - |
| Insulation Height | 0.142" (3.60mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Red |
| Current Rating (Amps) | 1.5A |
| Voltage Rating | 230V |
Submit your RFQ for 215464-4 and get a quote within 24 hours.
