TE Connectivity AMP Connectors

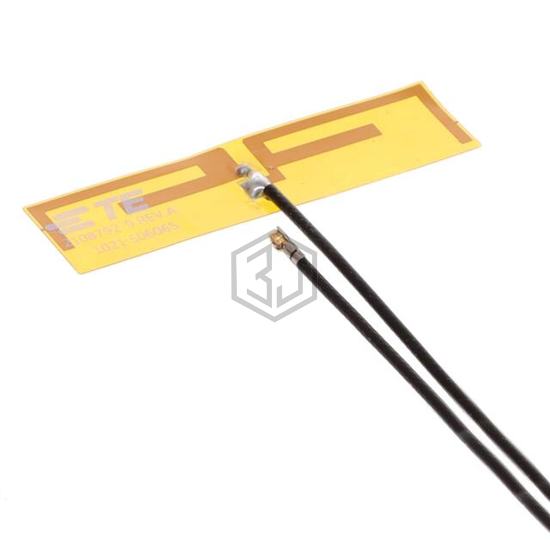

FPC ANT, MHF 4L, 200MM, WI-FI 6E
2108792-9 is a RF Antennas manufactured by TE Connectivity AMP Connectors. FPC ANT, MHF 4L, 200MM, WI-FI 6E. Key specifications: mounting type Adhesive, termination MHF4L, frequency range 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz.
In Stock: 2,439
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.45GHz, 5.5125GHz, 6.525GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 3 |
| VSWR | 2 |
| Return Loss | - |
| Gain | 4.5dBi |
| Power - Max | - |
| Features | Cable - 200mm |
| Termination | MHF4L |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.005" (0.12mm) |
| Applications | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
Submit your RFQ for 2108792-9 and get a quote within 24 hours.
