TE Connectivity AMP Connectors

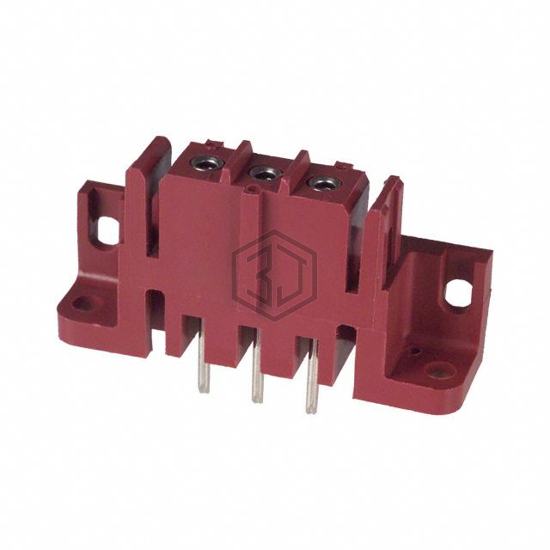

CONN HDR 3POS 0.197 TIN-LEAD PCB
207609-1 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN HDR 3POS 0.197 TIN-LEAD PCB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 130°C, voltage rating 600V, current rating (amps) 7.5A.
In Stock: 264
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Header |
| Contact Type | Female Socket |
| Style | Board to Cable/Wire |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.197" (5.00mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Insulation Color | Black, Red |
| Insulation Height | 0.768" (19.50mm) |
| Contact Length - Post | 0.186" (4.72mm) |
| Operating Temperature | -55°C ~ 130°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin-Lead |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Mounting Flange |
| Current Rating (Amps) | 7.5A |
| Voltage Rating | 600V |
Submit your RFQ for 207609-1 and get a quote within 24 hours.
