TE Connectivity AMP Connectors
CONN HDR 24P 0.197 TIN-LEAD PCB

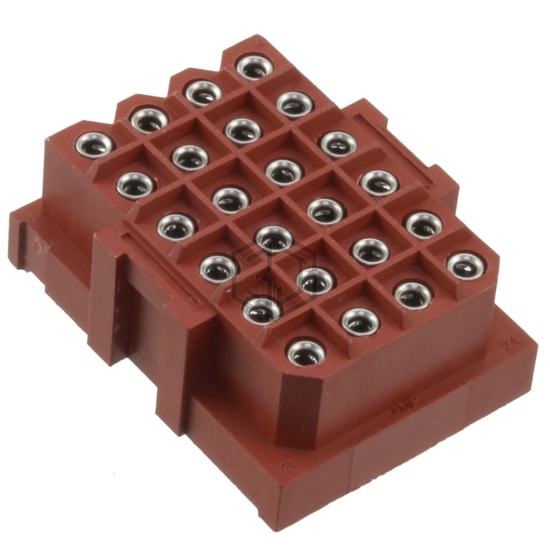

207532-2 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN HDR 24P 0.197 TIN-LEAD PCB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 130°C, voltage rating 600V, current rating (amps) 7.5A.
In Stock: 21
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Header |
| Contact Type | Female Socket |
| Style | Board to Cable/Wire |
| Number of Positions | 24 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.197" (5.00mm) |
| Number of Rows | 4 |
| Row Spacing - Mating | 0.197" (5.00mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Insulation Color | Black, Red |
| Insulation Height | 0.565" (14.35mm) |
| Contact Length - Post | 0.181" (4.60mm) |
| Operating Temperature | -55°C ~ 130°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin-Lead |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 7.5A |
| Voltage Rating | 600V |
