TE Connectivity AMP Connectors

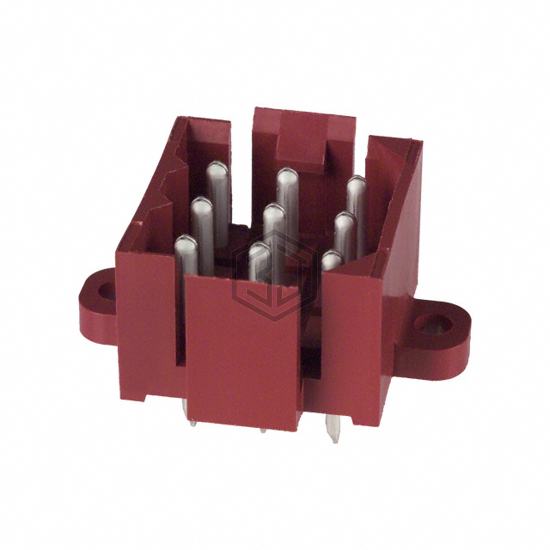

CONN HEADER VERT 9POS 5MM
207441-7 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 9POS 5MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 130°C, voltage rating 600V, contact material Brass.
In Stock: 1,209
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.197" (5.00mm) |
| Number of Positions | 9 |
| Number of Rows | 3 |
| Row Spacing - Mating | 0.197" (5.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Lock |
| Contact Length - Mating | - |
| Contact Length - Post | 0.181" (4.60mm) |
| Overall Contact Length | - |
| Insulation Height | 0.464" (11.79mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Mounting Flange |
| Operating Temperature | -55°C ~ 130°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black, Red |
| Current Rating (Amps) | 7.5A |
| Voltage Rating | 600V |
Submit your RFQ for 207441-7 and get a quote within 24 hours.
