TE Connectivity AMP Connectors

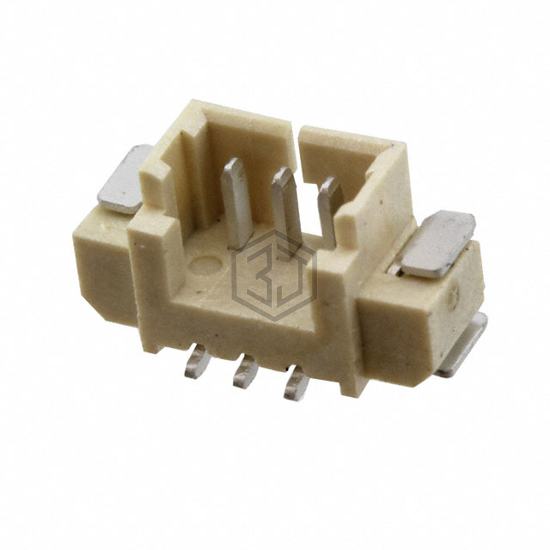

CONN HEADER SMD 3POS 1.25MM
2041321-3 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER SMD 3POS 1.25MM. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C, voltage rating 100VAC, contact material Phosphor Bronze.
In Stock: 10,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | - |
| Contact Length - Mating | 0.089" (2.25mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.187" (4.75mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 120.0µin (3.05µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | Solder Retention |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Natural |
| Current Rating (Amps) | 1A |
| Voltage Rating | 100VAC |
Submit your RFQ for 2041321-3 and get a quote within 24 hours.
