TE Connectivity AMP Connectors

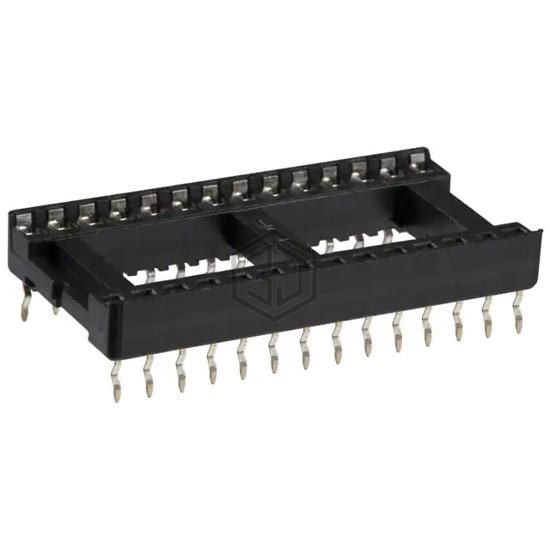

CONN IC DIP SOCKET 28POS TIN
2-641615-1 is a Sockets for ICs, Transistors manufactured by TE Connectivity AMP Connectors. CONN IC DIP SOCKET 28POS TIN. Key specifications: mounting type Through Hole, Right Angle, Vertical, operating temperature -55°C ~ 105°C, housing material Thermoplastic, Glass Filled, termination Solder.
In Stock: 89
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | DIP, 0.6" (15.24mm) Row Spacing |
| Number of Positions or Pins (Grid) | 28 (2 x 14) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole, Right Angle, Vertical |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | - |
| Contact Material - Post | Beryllium Copper |
| Housing Material | Thermoplastic, Glass Filled |
| Operating Temperature | -55°C ~ 105°C |
Submit your RFQ for 2-641615-1 and get a quote within 24 hours.
