TE Connectivity AMP Connectors

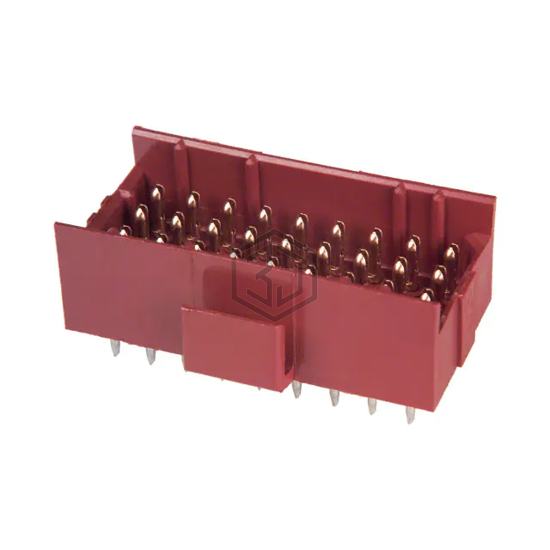

CONN HEADER VERT 36POS 4.2MM
2-640506-4 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 36POS 4.2MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating 250VAC, contact material Phosphor Bronze.
In Stock: 356
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.165" (4.20mm) |
| Number of Positions | 36 |
| Number of Rows | 4 |
| Row Spacing - Mating | 0.165" (4.20mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Lock |
| Contact Length - Mating | 0.220" (5.59mm) |
| Contact Length - Post | 0.210" (5.33mm) |
| Overall Contact Length | - |
| Insulation Height | 0.531" (13.50mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA), Nylon |
| Features | - |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black, Red |
| Current Rating (Amps) | 6A |
| Voltage Rating | 250VAC |
Submit your RFQ for 2-640506-4 and get a quote within 24 hours.
