TE Connectivity AMP Connectors

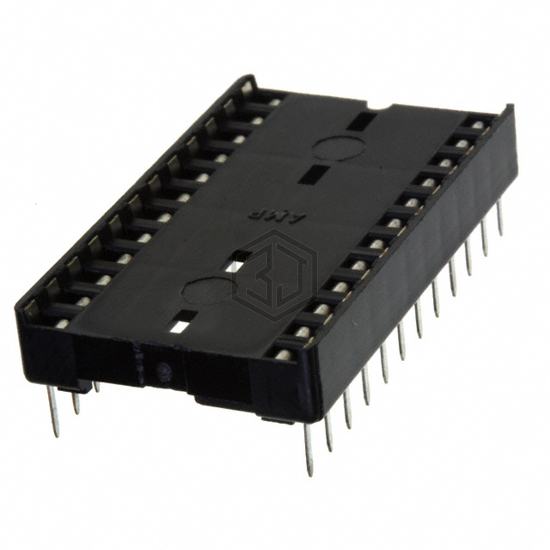

CONN IC DIP SOCKET 24POS GOLD
2-640361-4 is a Sockets for ICs, Transistors manufactured by TE Connectivity AMP Connectors. CONN IC DIP SOCKET 24POS GOLD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, housing material Thermoplastic, termination Solder.
In Stock: 393
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | DIP, 0.6" (15.24mm) Row Spacing |
| Number of Positions or Pins (Grid) | 24 (2 x 12) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Post | 15.0µin (0.38µm) |
| Contact Material - Post | Beryllium Copper |
| Housing Material | Thermoplastic |
| Operating Temperature | -55°C ~ 125°C |
Submit your RFQ for 2-640361-4 and get a quote within 24 hours.
