TE Connectivity AMP Connectors

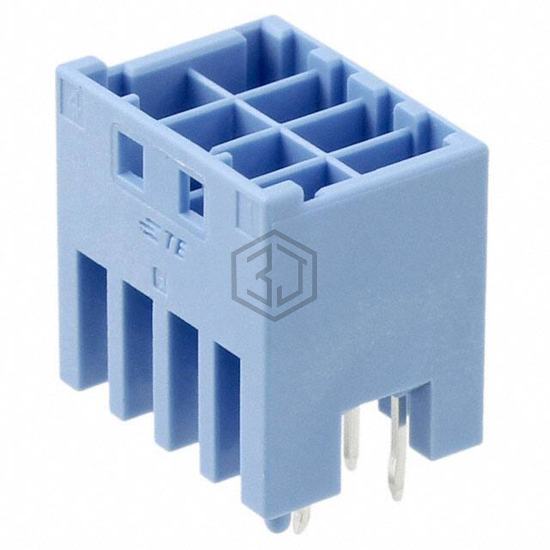

CONN HEADER VERT 8POS 3.3MM
2-1971906-4 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 8POS 3.3MM. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 105°C, voltage rating 250VAC, contact material Brass.
In Stock: 18,697
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.130" (3.30mm) |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.205" (5.20mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | 0.575" (14.60mm) |
| Insulation Height | 0.561" (14.25mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Features | Board Guide |
| Operating Temperature | -30°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Blue |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 250VAC |
Submit your RFQ for 2-1971906-4 and get a quote within 24 hours.
