TE Connectivity AMP Connectors

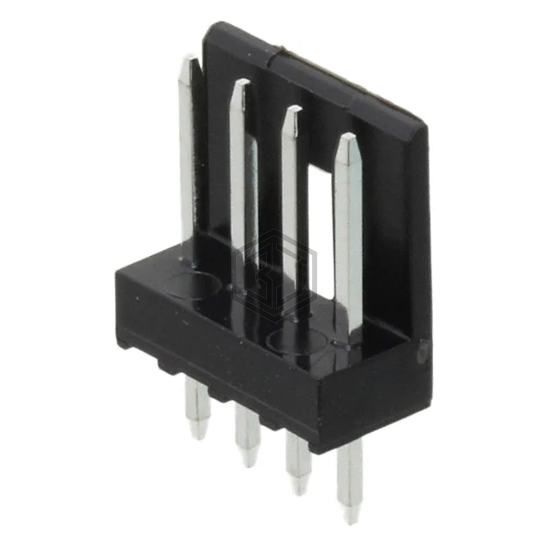

CONN HEADER VERT 4POS 2.5MM
2-171825-4 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 4POS 2.5MM. Key specifications: mounting type Through Hole, voltage rating 250VAC, 350VDC, contact material Brass, current rating (amps) 2A.
In Stock: 18,046
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | 0.295" (7.49mm) |
| Contact Length - Post | 0.142" (3.60mm) |
| Overall Contact Length | 0.551" (14.00mm) |
| Insulation Height | 0.409" (10.40mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2A |
| Voltage Rating | 250VAC, 350VDC |
Submit your RFQ for 2-171825-4 and get a quote within 24 hours.
