TE Connectivity AMP Connectors
SCL 1.0 HDR DRVT USP 020 SMT G3

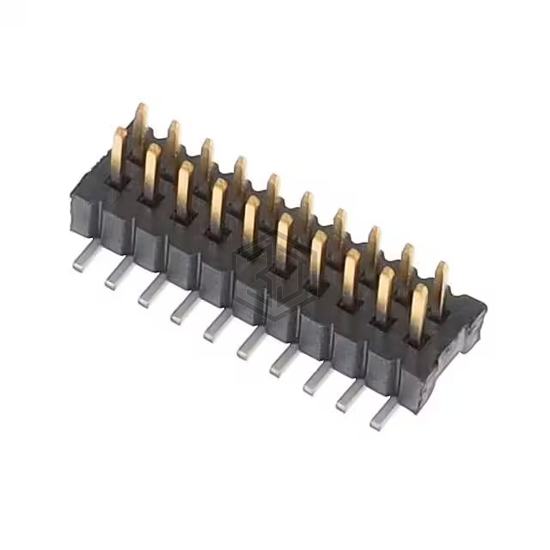

1MM-HU-D10-VS-00-H-TBP is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. SCL 1.0 HDR DRVT USP 020 SMT G3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage rating 30VAC, contact material Phosphor Bronze.
In Stock: 1,500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header, Breakaway |
| Contact Type | Male Pin |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.039" (1.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.083" (2.10mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.059" (1.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Pick and Place |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1A |
| Voltage Rating | 30VAC |
Submit your RFQ for 1MM-HU-D10-VS-00-H-TBP and get a quote within 24 hours.
