TE Connectivity AMP Connectors
TERM BLOCK PLUG 5POS STR 3.5MM

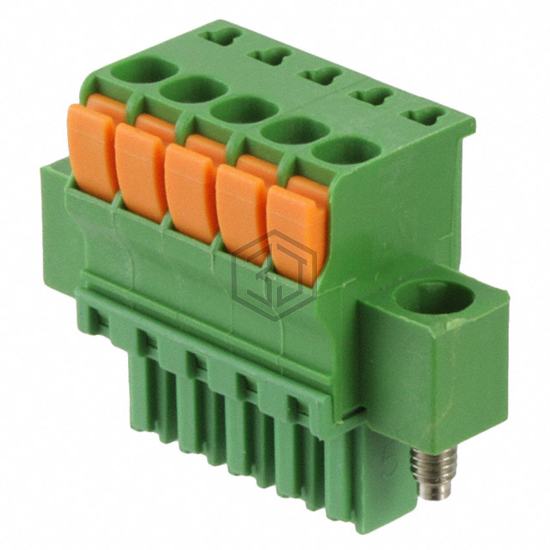

1986723-5 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by TE Connectivity AMP Connectors. TERM BLOCK PLUG 5POS STR 3.5MM. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 110°C, color Green, termination style Screwless - Leg Spring, Push-In Spring.
In Stock: 710
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 5 |
| Positions Per Level | 5 |
| Number of Levels | 1 |
| Pitch | 0.138" (3.50mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 9 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | 0.05-2mm² |
| Color | Green |
| Operating Temperature | -40°C ~ 110°C |
| Contact Mating Finish | Tin |
| Features | Mating Flange |
