TE Connectivity AMP Connectors
CONN HEADER R/A 4POS 16MM

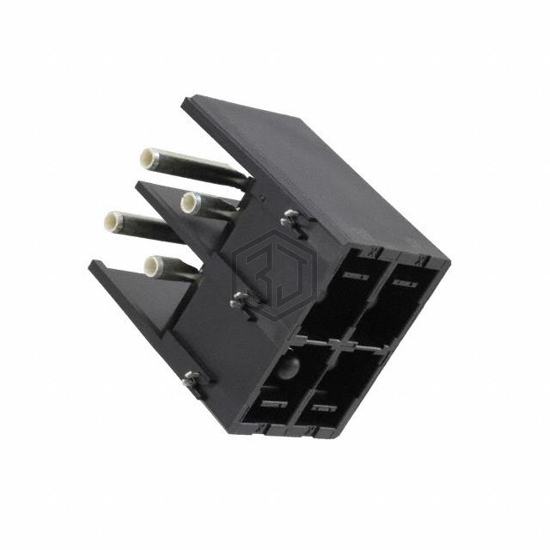

1981823-1 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER R/A 4POS 16MM. Key specifications: mounting type Through Hole, Right Angle, voltage rating 630V, contact material Copper Alloy, current rating (amps) 65A.
In Stock: 191
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.630" (16.00mm) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.630" (16.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | - |
| Contact Length - Post | 0.181" (4.60mm) |
| Overall Contact Length | - |
| Insulation Height | 1.378" (35.00mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Features | Board Lock |
| Operating Temperature | - |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | - |
| Current Rating (Amps) | 65A |
| Voltage Rating | 630V |
Submit your RFQ for 1981823-1 and get a quote within 24 hours.
