TE Connectivity AMP Connectors

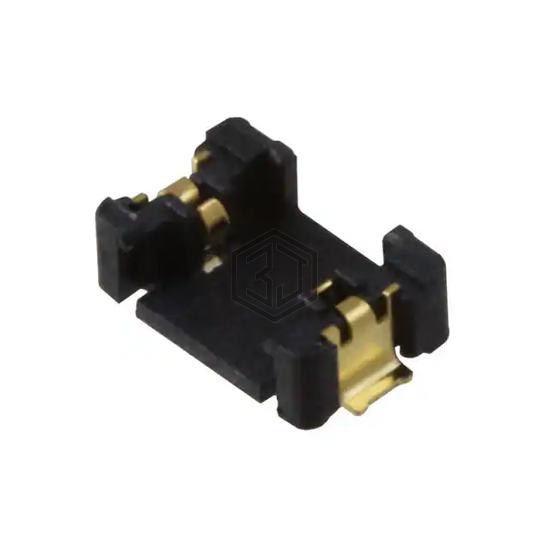

CONN RCPT 2POS 0.031 GOLD SMD
1981813-1 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN RCPT 2POS 0.031 GOLD SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C, voltage rating 30V, current rating (amps) 0.5A.
In Stock: 7,638
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Outer Shroud Contact |
| Style | Board to Cable/Wire |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.031" (0.80mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
| Insulation Color | Black |
| Insulation Height | 0.055" (1.40mm) |
| Contact Length - Post | - |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Solder Retention |
| Current Rating (Amps) | 0.5A |
| Voltage Rating | 30V |
Submit your RFQ for 1981813-1 and get a quote within 24 hours.
