TE Connectivity AMP Connectors

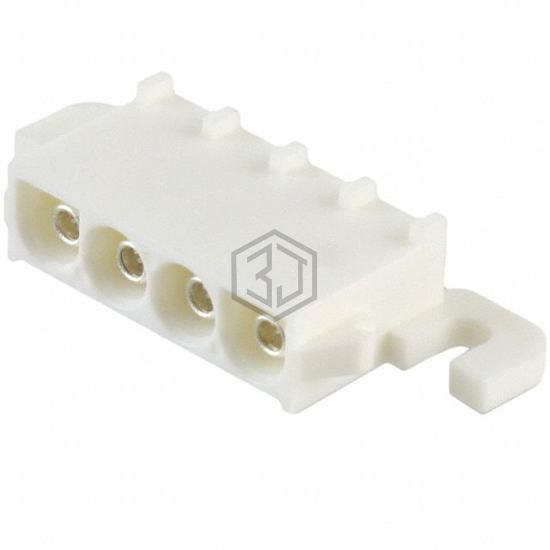

CONN RCPT 4P 0.25 SILVER PCB R/A
193839-3 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN RCPT 4P 0.25 SILVER PCB R/A. Key specifications: mounting type Through Hole, Right Angle, termination Solder, number of positions 4, connector type Receptacle.
In Stock: 950
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Cable/Wire |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.250" (6.35mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Insulation Color | Natural |
| Insulation Height | 0.680" (17.27mm) |
| Contact Length - Post | 0.160" (4.06mm) |
| Operating Temperature | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | - |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Mounting Flange |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 193839-3 and get a quote within 24 hours.
