TE Connectivity AMP Connectors

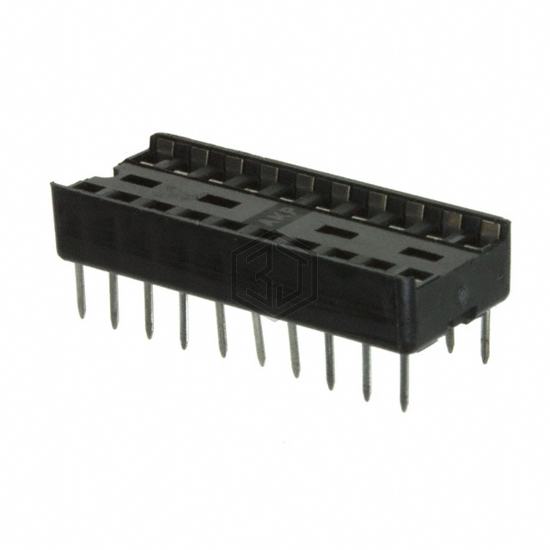

CONN IC DIP SOCKET 20POS GOLD
1825094-6 is a Sockets for ICs, Transistors manufactured by TE Connectivity AMP Connectors. CONN IC DIP SOCKET 20POS GOLD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, housing material Thermoplastic, Glass Filled, termination Solder.
In Stock: 677
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 20 (2 x 10) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Material - Mating | Phosphor Bronze |
| Mounting Type | Through Hole |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Post | 15.0µin (0.38µm) |
| Contact Material - Post | Phosphor Bronze |
| Housing Material | Thermoplastic, Glass Filled |
| Operating Temperature | -55°C ~ 125°C |
Submit your RFQ for 1825094-6 and get a quote within 24 hours.
