TE Connectivity AMP Connectors
CONN SOCKET SIP 10POS GOLD

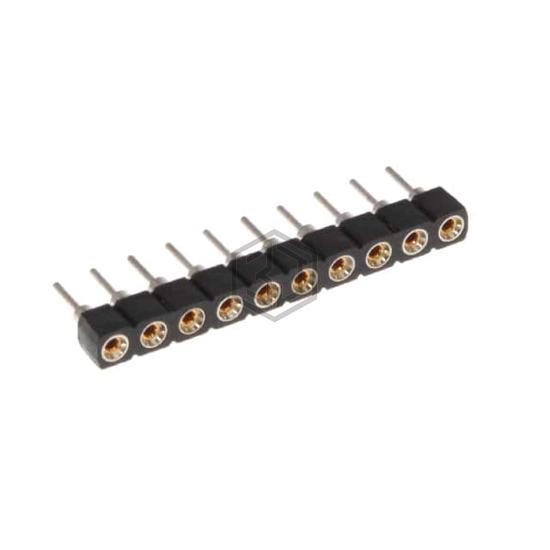

1814655-5 is a Sockets for ICs, Transistors manufactured by TE Connectivity AMP Connectors. CONN SOCKET SIP 10POS GOLD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, housing material Thermoplastic, Polyester, termination Solder.
In Stock: 194
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | SIP |
| Number of Positions or Pins (Grid) | 10 (1 x 10) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Post | 29.5µin (0.75µm) |
| Contact Material - Post | Brass |
| Housing Material | Thermoplastic, Polyester |
| Operating Temperature | -55°C ~ 125°C |
Submit your RFQ for 1814655-5 and get a quote within 24 hours.
