TE Connectivity AMP Connectors

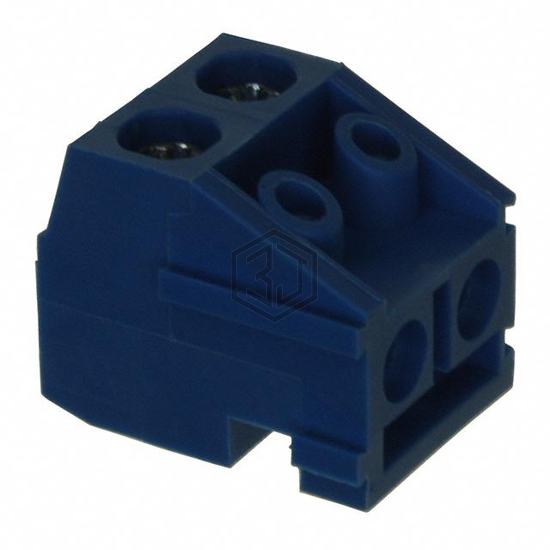

TERM BLOCK PLUG 2POS 90DEG 5MM
1776263-2 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by TE Connectivity AMP Connectors. TERM BLOCK PLUG 2POS 90DEG 5MM. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 105°C, color Blue, termination style Screw - Leaf Spring, Wire Guard.
In Stock: 4,278
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug for Unshrouded Header |
| Number of Positions | 2 |
| Positions Per Level | 2 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 90° |
| Termination Style | Screw - Leaf Spring, Wire Guard |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 10 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 16-24 AWG |
| Wire Gauge or Range - mm² | 0.2-1.4mm² |
| Color | Blue |
| Operating Temperature | -40°C ~ 105°C |
| Contact Mating Finish | Tin |
| Features | Interlocking (Side) |
Submit your RFQ for 1776263-2 and get a quote within 24 hours.
