TE Connectivity AMP Connectors

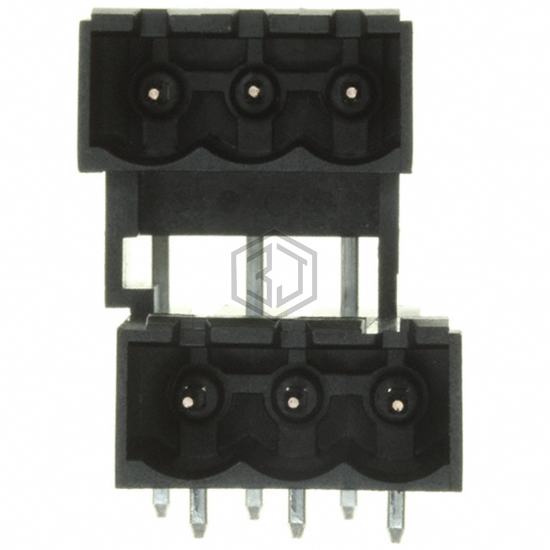

TERM BLOCK HDR 6POS 90DEG 5MM
1776166-3 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by TE Connectivity AMP Connectors. TERM BLOCK HDR 6POS 90DEG 5MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, color Black, termination style Solder.
In Stock: 400
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 6 |
| Positions Per Level | 3 |
| Number of Levels | 2 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | 90°, Right Angle |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 12 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Color | Black |
| Operating Temperature | -40°C ~ 110°C |
| Contact Mating Finish | Tin |
| Features | Interlocking (Side) |
Submit your RFQ for 1776166-3 and get a quote within 24 hours.
