TE Connectivity AMP Connectors

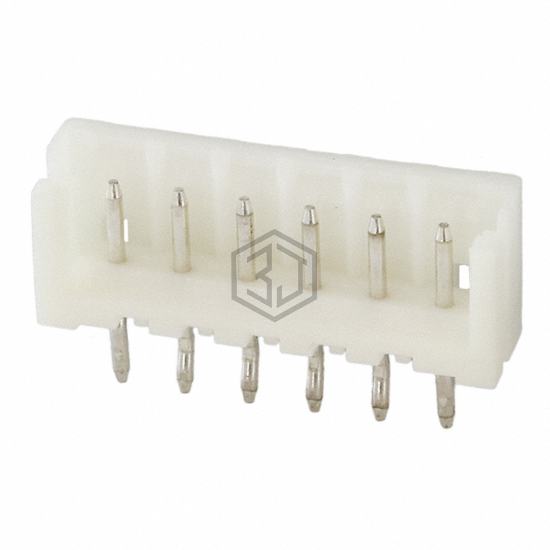

CONN HEADER VERT 6POS 2.5MM
177537-6 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 6POS 2.5MM. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage rating 250VAC, contact material Brass.
In Stock: 59,004
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall |
| Mounting Type | Through Hole |
| Termination | Press-Fit, Solder |
| Fastening Type | Friction Lock |
| Contact Length - Mating | 0.134" (3.39mm) |
| Contact Length - Post | 0.125" (3.18mm) |
| Overall Contact Length | - |
| Insulation Height | 0.255" (6.48mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Features | - |
| Operating Temperature | -25°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 250VAC |
Submit your RFQ for 177537-6 and get a quote within 24 hours.
