TE Connectivity AMP Connectors
CONN EDGE DUAL FMALE 26POS 0.100

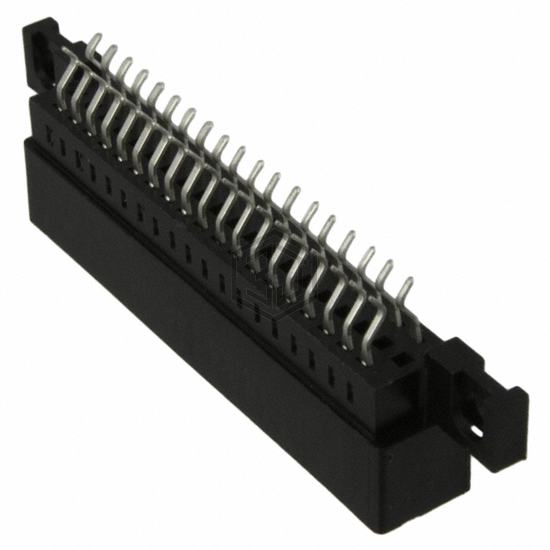

1761500-1 is a Card Edge Connectors - Edgeboard Connectors manufactured by TE Connectivity AMP Connectors. CONN EDGE DUAL FMALE 26POS 0.100. Key specifications: mounting type Board Edge, Straddle Mount, operating temperature -55°C ~ 85°C, color Black, contact material Copper Alloy.
In Stock: 146
| Attribute | Value |
|---|---|
| Product Status | Active |
| Card Type | Non Specified - Dual Edge |
| Gender | Female |
| Number of Positions/Bay/Row | 1; 1; 1; 10 |
| Number of Positions | 26 (20 + 6 Power) |
| Card Thickness | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) |
| Number of Rows | 2 |
| Pitch | 0.100" (2.54mm) |
| Read Out | Dual |
| Features | Card Extender |
| Mounting Type | Board Edge, Straddle Mount |
| Termination | Solder |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Type | - |
| Color | Black |
| Flange Feature | Flush Mount, Side Opening, Unthreaded, 0.145" (3.68mm) Dia |
| Operating Temperature | -55°C ~ 85°C |
Submit your RFQ for 1761500-1 and get a quote within 24 hours.
