TE Connectivity AMP Connectors
CONN HEADER VERT 2POS 7.92MM

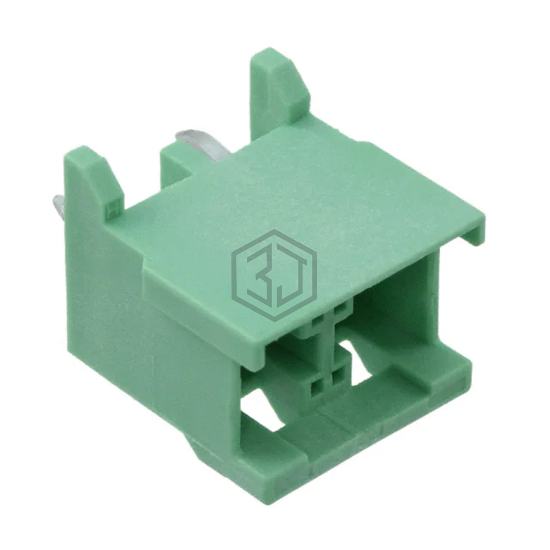

1747052-5 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 2POS 7.92MM. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 105°C, voltage rating 300VAC, contact material Copper Alloy.
In Stock: 1,924
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Tab |
| Pitch - Mating | 0.312" (7.92mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Press-Fit, Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.571" (14.50mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Features | Board Guide |
| Operating Temperature | -30°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Green |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 300VAC |
Submit your RFQ for 1747052-5 and get a quote within 24 hours.
