TE Connectivity AMP Connectors
CONN HEADER VERT 3POS 5.08MM

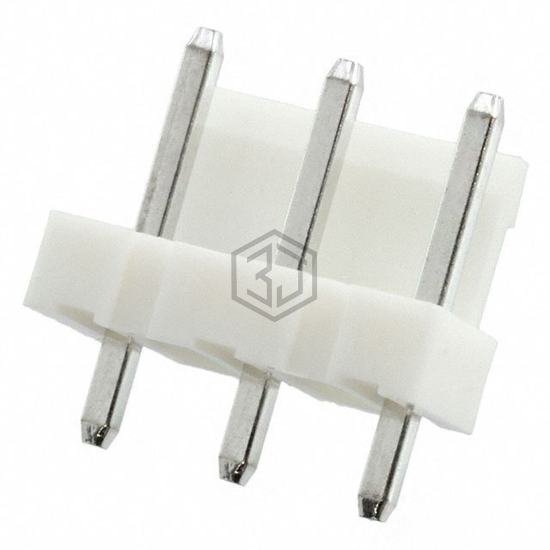

1744037-3 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 3POS 5.08MM. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage rating 250VAC, contact material Copper Alloy.
In Stock: 6,049
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.200" (5.08mm) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Length - Mating | 0.303" (7.70mm) |
| Contact Length - Post | 0.146" (3.70mm) |
| Overall Contact Length | 0.575" (14.60mm) |
| Insulation Height | 0.126" (3.20mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 120.0µin (3.05µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Features | - |
| Operating Temperature | -25°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 7.5A |
| Voltage Rating | 250VAC |
Submit your RFQ for 1744037-3 and get a quote within 24 hours.
