TE Connectivity AMP Connectors

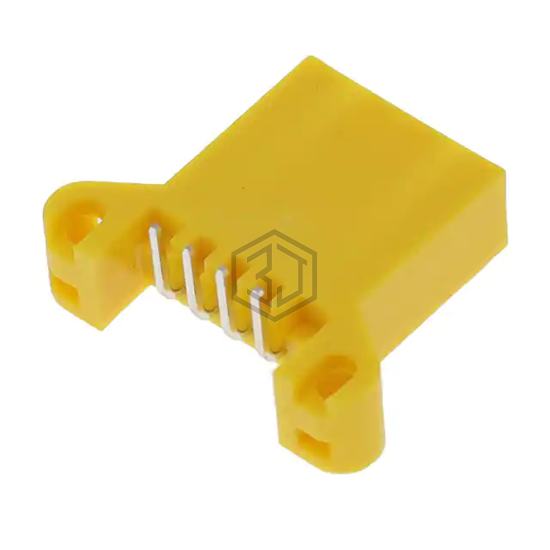

CONN HEADER R/A 4POS 2.54MM
1743218-5 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER R/A 4POS 2.54MM. Key specifications: mounting type Through Hole, Right Angle, contact material Phosphor Bronze, termination Solder, number of positions 4.
In Stock: 1,604
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | 0.264" (6.70mm) |
| Contact Length - Post | 0.111" (2.82mm) |
| Overall Contact Length | - |
| Insulation Height | 0.425" (10.80mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Mounting Flange |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Yellow |
| Current Rating (Amps) | - |
| Voltage Rating | - |
