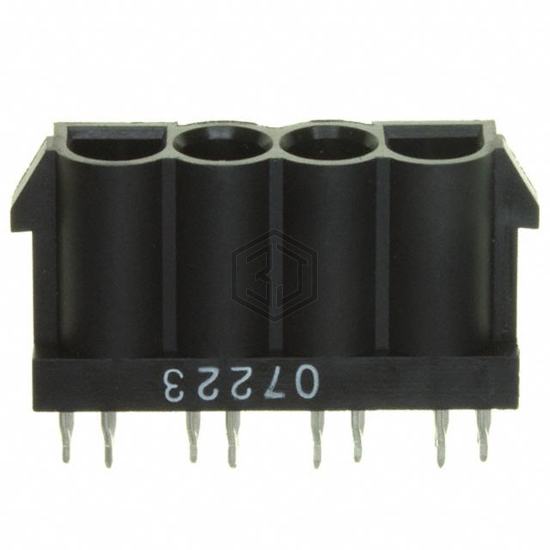

TE Connectivity AMP Connectors
CONN HEADER VERT 4POS 6.35MM
173926-1 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 4POS 6.35MM. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage rating 500VAC, contact material Copper Alloy.
In Stock: 1,169
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.250" (6.35mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Press-Fit, Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.189" (4.80mm) |
| Overall Contact Length | 0.764" (19.40mm) |
| Insulation Height | 0.624" (15.85mm) |
| Contact Shape | - |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic, Glass Filled |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 15A |
| Voltage Rating | 500VAC |
Submit your RFQ for 173926-1 and get a quote within 24 hours.
