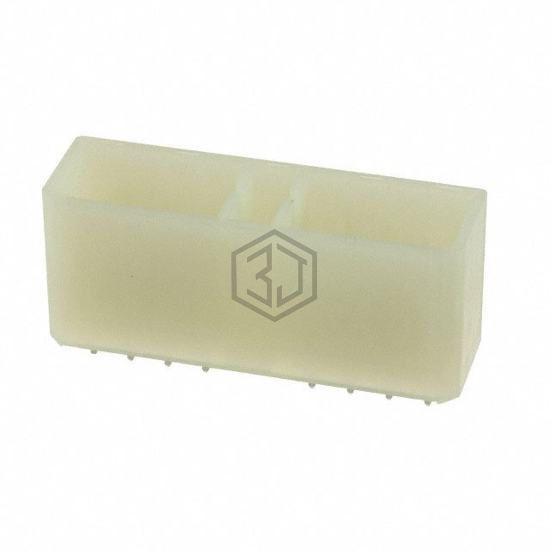

TE Connectivity AMP Connectors
CONN HEADER VERT 17POS
171363-1 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 17POS. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 105°C, contact material Brass, termination Solder.
In Stock: 24
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Tab |
| Pitch - Mating | - |
| Number of Positions | 17 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.236" (6.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.157" (4.00mm) |
| Overall Contact Length | - |
| Insulation Height | 0.866" (22.00mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Features | - |
| Operating Temperature | -30°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Natural |
| Current Rating (Amps) | - |
| Voltage Rating | - |
