TE Connectivity AMP Connectors

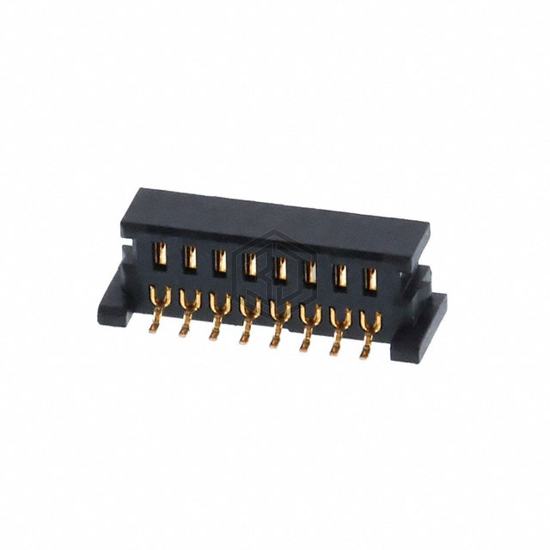

CONN HDR 8POS 0.039 GOLD SMD R/A
1674000-2 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN HDR 8POS 0.039 GOLD SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 105°C, voltage rating 10VAC, current rating (amps) 1A.
In Stock: 514
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Female Blade Socket |
| Style | Board to Cable/Wire |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Insulation Color | Black |
| Insulation Height | 0.128" (3.25mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | - |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 1A |
| Voltage Rating | 10VAC |
Submit your RFQ for 1674000-2 and get a quote within 24 hours.
