TE Connectivity AMP Connectors

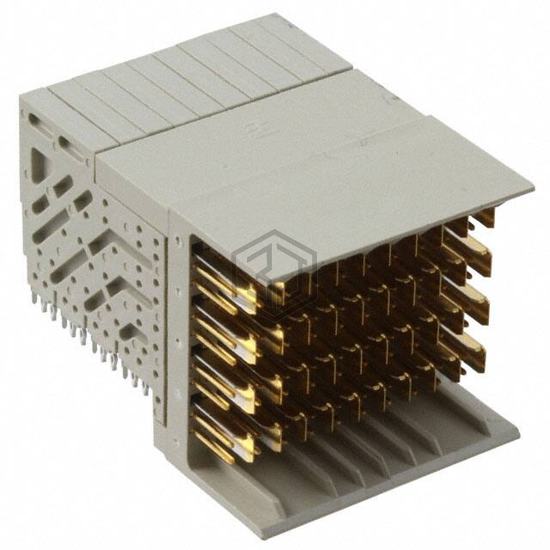

CONN HDR HIGH SPEED 120POS PCB
1645601-1 is a Backplane Connectors - Specialized manufactured by TE Connectivity AMP Connectors. CONN HDR HIGH SPEED 120POS PCB. Key specifications: mounting type Through Hole, Right Angle, termination Press-Fit, number of positions 120, connector type Header, Male Pins and Blades.
In Stock: 67
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Usage | Coplanar, Daughtercard |
| Connector Type | Header, Male Pins and Blades |
| Connector Style | High Speed |
| Number of Positions | 120 |
| Number of Positions Loaded | All |
| Pitch | 0.098" (2.50mm) |
| Number of Rows | 8 |
| Number of Columns | 10 |
| Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit |
| Contact Layout, Typical | 80 Single Signal, 40 Ground |
| Features | Shielded |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Color | - |
Submit your RFQ for 1645601-1 and get a quote within 24 hours.
