TE Connectivity AMP Connectors

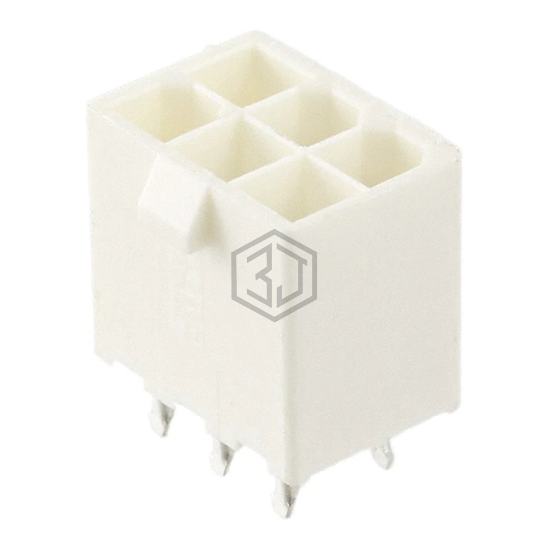

CONN HEADER VERT 6POS 4.2MM
1586768-6 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 6POS 4.2MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating 600VAC, contact material Brass.
In Stock: 470
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.165" (4.20mm) |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.165" (4.20mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.138" (3.50mm) |
| Overall Contact Length | - |
| Insulation Height | 0.504" (12.80mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Glow Wire Compliant |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-2 |
| Insulation Color | White |
| Current Rating (Amps) | 9A |
| Voltage Rating | 600VAC |
