TE Connectivity AMP Connectors
CONN HEADER VERT 2POS

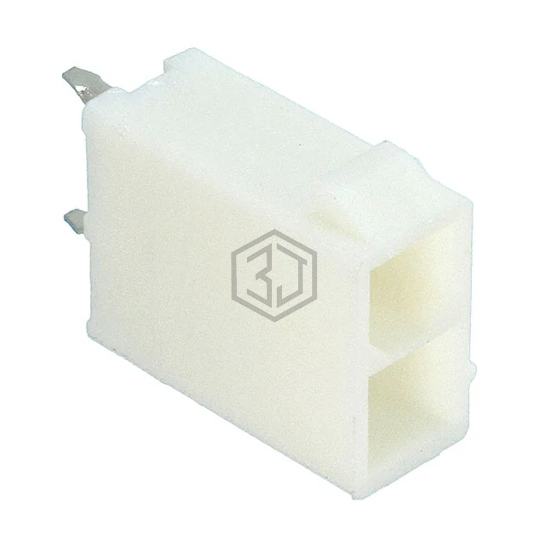

1586038-2 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 2POS. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating 600VAC, contact material Brass Alloy.
In Stock: 49,229
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | - |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.165" (4.20mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.138" (3.50mm) |
| Overall Contact Length | - |
| Insulation Height | 0.504" (12.80mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 80.0µin (2.03µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass Alloy |
| Insulation Material | Polyamide (PA), Nylon |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 9A |
| Voltage Rating | 600VAC |
Submit your RFQ for 1586038-2 and get a quote within 24 hours.
