TE Connectivity AMP Connectors

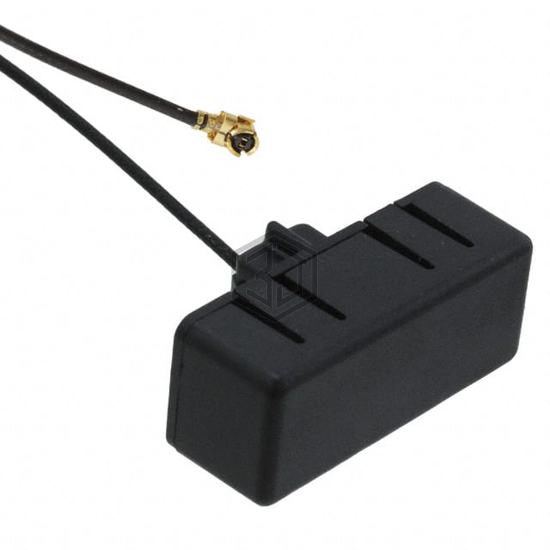

RF ANT 2.4GHZ/5.5GHZ MODULE CAB
1513472-5 is a RF Antennas manufactured by TE Connectivity AMP Connectors. RF ANT 2.4GHZ/5.5GHZ MODULE CAB. Key specifications: mounting type Panel Mount, termination U.FL (UMCC), IPEX MHF1, power - max 10 W, frequency range 2.4GHz ~ 2.483.5GHz, 5.15GHz ~ 5.875GHz.
In Stock: 2,895
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.4GHz, 5.5GHz |
| Frequency Range | 2.4GHz ~ 2.483.5GHz, 5.15GHz ~ 5.875GHz |
| Antenna Type | Module |
| Number of Bands | 2 |
| VSWR | 3 |
| Return Loss | - |
| Gain | 3dBi |
| Power - Max | 10 W |
| Features | Cable - 360mm |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Height (Max) | 0.394" (10.00mm) |
| Applications | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
Submit your RFQ for 1513472-5 and get a quote within 24 hours.
