TE Connectivity AMP Connectors

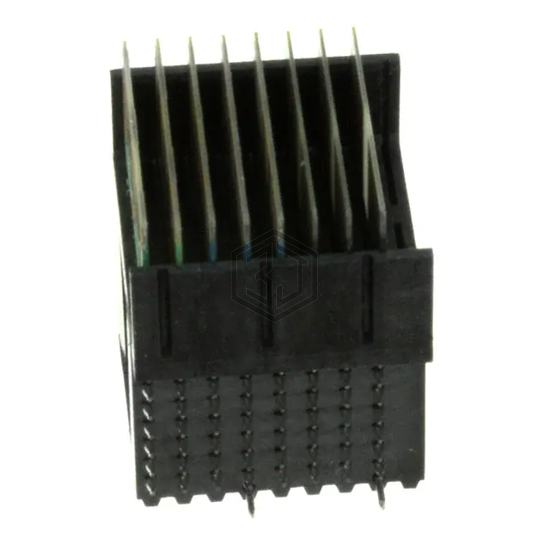

CONN PLUG VITA46 56POS EDGE MNT
1410189-3 is a Backplane Connectors - Specialized manufactured by TE Connectivity AMP Connectors. CONN PLUG VITA46 56POS EDGE MNT. Key specifications: mounting type Board Edge, Through Hole, Right Angle, color Black, termination Press-Fit, number of positions 56.
In Stock: 392
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Usage | Daughtercard |
| Connector Type | Plug, Male Blades |
| Connector Style | VITA 46, Half, Left End |
| Number of Positions | 56 |
| Number of Positions Loaded | 53 |
| Pitch | 0.071" (1.80mm) |
| Number of Rows | 7 |
| Number of Columns | 8 |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit |
| Contact Layout, Typical | 4 Signal Pairs, 16 Single Signal, 6 Power Groups, 11 Ground, 3 Open |
| Features | Board Guide |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Color | Black |
Submit your RFQ for 1410189-3 and get a quote within 24 hours.
