TE Connectivity AMP Connectors

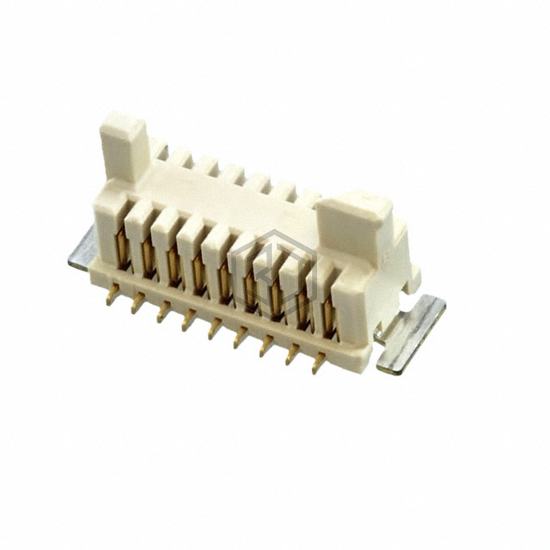

CONN RCPT 18POS 0.031 GOLD SMD
1375870-7 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN RCPT 18POS 0.031 GOLD SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 85°C, voltage rating 30VAC, termination Solder.
In Stock: 728
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Blade Socket |
| Style | Board to Cable/Wire |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.031" (0.80mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Natural |
| Insulation Height | 0.197" (5.00mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Solder Retention |
| Current Rating (Amps) | - |
| Voltage Rating | 30VAC |
Submit your RFQ for 1375870-7 and get a quote within 24 hours.
