TE Connectivity AMP Connectors
CONN HEADER VERT 3POS 2.5MM

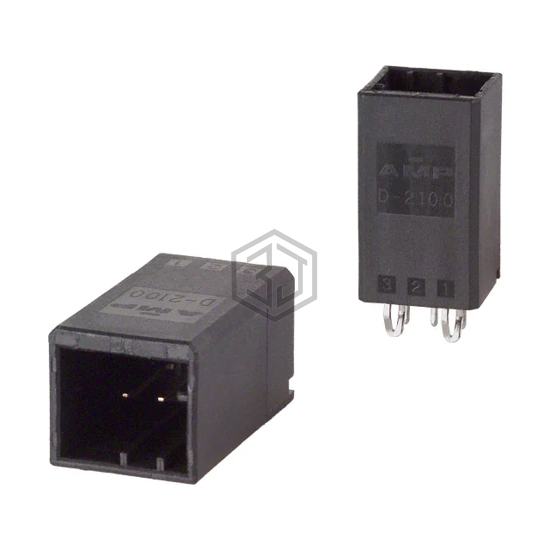

1318123-1 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 3POS 2.5MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating 250VAC, contact material Copper Alloy.
In Stock: 8,825
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Tab |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | - |
| Contact Length - Post | 0.134" (3.40mm) |
| Overall Contact Length | - |
| Insulation Height | 0.700" (17.78mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Features | Board Lock |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 5A |
| Voltage Rating | 250VAC |
Submit your RFQ for 1318123-1 and get a quote within 24 hours.
