TE Connectivity AMP Connectors
CONN HEADER VERT 40POS

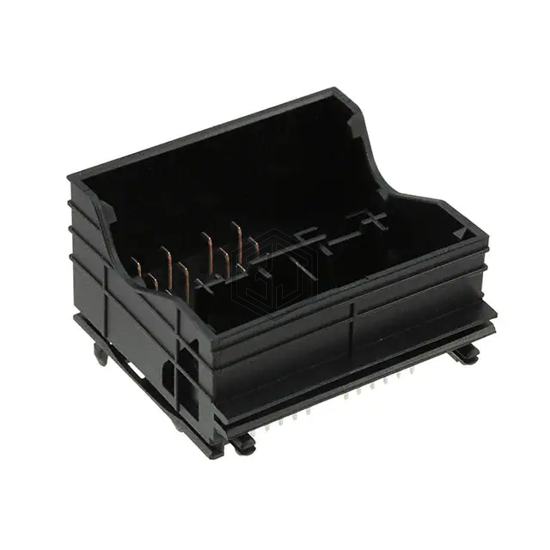

1241768-1 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 40POS. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 80°C, termination Solder, number of positions 40 (24 + 16 Power).
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | - |
| Number of Positions | 40 (24 + 16 Power) |
| Number of Rows | - |
| Row Spacing - Mating | - |
| Number of Positions Loaded | 24 |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 1.114" (28.30mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | - |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Features | Board Guide, Board Lock |
| Operating Temperature | -40°C ~ 80°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 1241768-1 and get a quote within 24 hours.
