TE Connectivity AMP Connectors
CONN HEADER SMD R/A 20POS 1.27MM

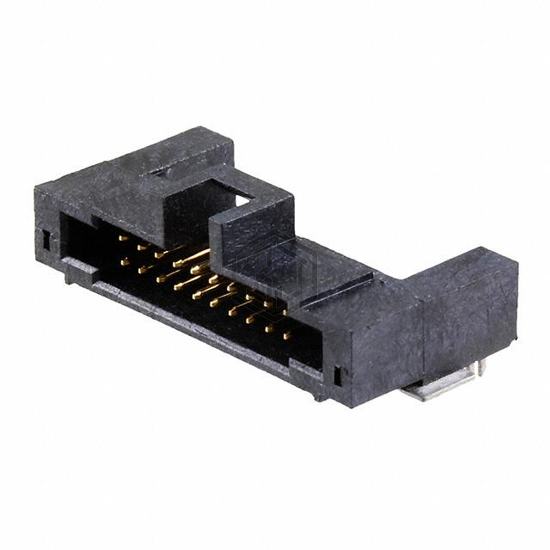

104895-2 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER SMD R/A 20POS 1.27MM. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -65°C ~ 105°C, contact material Brass, current rating (amps) 0.5A per Contact.
In Stock: 171
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.213" (5.40mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Material | Brass |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Board Lock, Solder Retention |
| Operating Temperature | -65°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 0.5A per Contact |
| Voltage Rating | - |
Submit your RFQ for 104895-2 and get a quote within 24 hours.
