TE Connectivity AMP Connectors

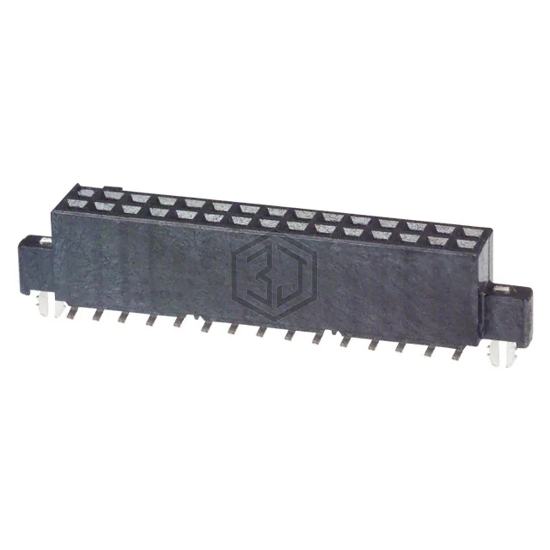

CONN RCPT 30POS 0.05 GOLD SMD
104652-3 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by TE Connectivity AMP Connectors. CONN RCPT 30POS 0.05 GOLD SMD. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 105°C, termination Solder, number of positions 30.
In Stock: 839
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.187" (4.75mm) |
| Contact Length - Post | - |
| Operating Temperature | -65°C ~ 105°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin-Lead |
| Mated Stacking Heights | 6.35mm, 8.13mm, 9.91mm |
| Ingress Protection | - |
| Features | Board Lock |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 104652-3 and get a quote within 24 hours.
