TE Connectivity AMP Connectors
CONN HEADER VERT 8POS 2.54MM

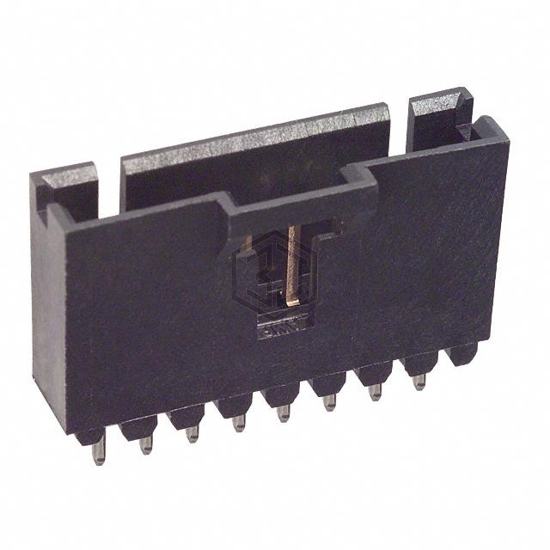

104362-7 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER VERT 8POS 2.54MM. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 105°C, voltage rating 267V, contact material Brass.
In Stock: 382
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Press-Fit, Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | 0.230" (5.84mm) |
| Contact Length - Post | 0.130" (3.30mm) |
| Overall Contact Length | 0.550" (13.97mm) |
| Insulation Height | 0.535" (13.60mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Material | Brass |
| Insulation Material | Thermoplastic |
| Features | Keying Slot |
| Operating Temperature | -65°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | 267V |
Submit your RFQ for 104362-7 and get a quote within 24 hours.
