TE Connectivity AMP Connectors
CONN HEADER R/A 3POS 2.54MM

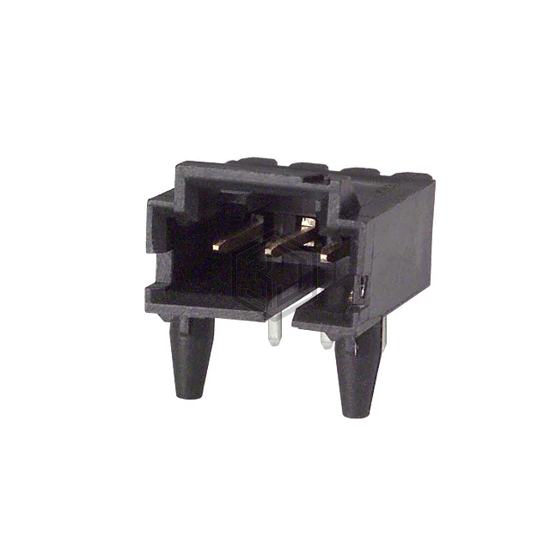

104361-2 is a Rectangular Connectors - Headers, Male Pins manufactured by TE Connectivity AMP Connectors. CONN HEADER R/A 3POS 2.54MM. Key specifications: mounting type Through Hole, Right Angle, operating temperature -65°C ~ 105°C, contact material Brass, current rating (amps) 3A.
In Stock: 156
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | 0.230" (5.84mm) |
| Contact Length - Post | 0.145" (3.68mm) |
| Overall Contact Length | - |
| Insulation Height | 0.200" (5.08mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Material | Brass |
| Insulation Material | Thermoplastic |
| Features | Board Lock, Keying Slot |
| Operating Temperature | -65°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
Submit your RFQ for 104361-2 and get a quote within 24 hours.
